Mitsubishi Mini-Split Heat Pumps

Mitsbishi Mini-Splits

For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions.

For over a decade, Jeff Wright Heating and Air Conditioning has offered Mitsubishi ductless mini-splits to metro Richmond, VA homeowners and businesses.

Jeff Wright Htg. & A/C Servicesstarstarstarstarstar4.8 / 5

5 stars
126
4 stars
11
3 stars
0
2 stars
0
1 stars
0

139 Total Reviews /files/jeff-wright-logo_1.png804-506-9767$1716 Devers RD., Richmond VA

Mitsubishi Ducted Air Handler Indoor Unit

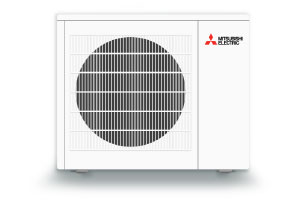

Single Zone Outdoor Units

MUZ-WR Series

Model Clg MBH SEER Htg MBH HSPF Min Op °F
MUZ-GL09 9.0 24.6 10.9 12.8 -9°
MUZ-GL12 12.0 23.1 14.4 12.5 -9°F
MUZ-GL15 14.0 21.6 18.0 11.7 -9°
MUZ-GL18 18.0 20.5 21.6 11.2 -9°
MUZ-GL24 22.4 20.5 27.6 10.0 -9

Advanced Filtration System: combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.

Hot Start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.

Kumo Cloud Compatible Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.

Precision Temperature Control Technology The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.

Blue Fin Condenser allows you to save a cooling profile consisting of a temperature, a fan speed, and an airflow direction. This profile can be activated easily with a single press of the Smart Set button on the remote controller.

MUX-GL Series

Model Clg MBH SEER Htg MBH HSPF Min Op °F
MUZ-WR09 9.0 16.0 10.9 8.5
MUZ-WR12 12.0 16.0 12.2 8.5
MUZ-WR18 17.2 16.0 18.0 8.5
MUZ-FH18 22.5 16.0 26.0 8.5

Precision Temperature Control Technology Condensers are equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, the unit matches output to the zone for precise temperature control and improved efficiency.

Advanced Filtration System: combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.

Kumo Cloud Compatible Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.

Blue Fin Condenser allows you to save a cooling profile consisting of a temperature, a fan speed, and an airflow direction. This profile can be activated easily with a single press of the Smart Set button on the remote controller.

Hyper Heating
YEAR-ROUND COMFORT IN ANY CLIMATE


HYPER-HEATING
H2I®

Designed to provide comfortable indoor temperatures in extreme cold-climate conditions (as low as -13° F) while saving energy and money.

MINIMAL ENERGY
CONSUMPTION

INVERTER zoning systems deliver only the amount of hot air needed to achieve the desired temperature: no more, no less.

INSTANT
HOT START

Hot-Start technology ensures you feel warm air immediately.


ONLY MITSUBISHI ELECTRIC HEAT PUMPS FEATURE HYPER-HEATING

While heat pumps have always been an efficient way to provide winter heating, they tend to perform poorly in very cold climates. Until now.

Mitsubishi Electric has introduced Hyper-Heating INVERTER® (H2i) technology, a significant advance in heat pumps. H2i uses an enhanced compressor system to deliver heat even when outdoor temperatures are as low as -13° F. You no longer need supplemental heat sources to maintain comfort or separate heating and cooling systems to provide heating in the winter and cooling in the summer. Hot-Start technology provides warm air instantly.

Mitsubishi Ducted Air Handler Indoor Unit

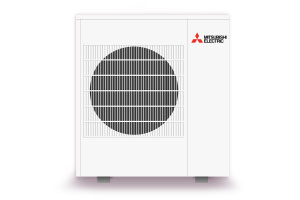

Multi Zone Outdoor Units

Model Max Zones Hyper Heat Clg MBH SEER Htg MBH HSPF Min Op °F
MXZ2C20NA2 2 No 23.6 20.0 25.0 9.65
MXZ3C24NA2 3 No 23.6 20.0 25.0 9.8
MXZ3C30NA2 3 No 28.4 19.0 28.6 10.6
MXZ4C36NA2 4 No 35.4 19.2 36.0 11.0
MXZ5C42NA2 5 No 40.5 19.7 45.0 10.3
MXZ8C48NA 8 No 48.0 18.9 54.0 11.4

Precision Temperature Control Technology Condensers are equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, the unit matches output to the zone for precise temperature control and improved efficiency.

Integrated Base Pan Heater MXZ-C outdoor condensers have a factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.

Hot Start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.

Kumo Cloud Compatible Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.

Mix and Match Compatible with more than two dozen different indoor units.

Mitsubishi Ducted Air Handler Indoor Unit

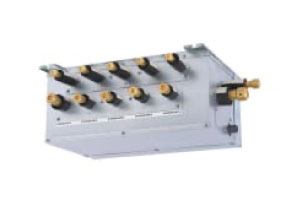

Branch Boxes

Branch boxes are for used in multi-zone mini split applications with Mitsubishi's MXZ-4C, MXZ-5C, and MXZ-8C outdoor condensers. It manages the flow of both refrigerant and power from the outdoor condenser to any connected indoor units.

With electronic LEVs, Mitsubishi's branch boxes ensure optimal refrigerant flow and an accurate coil temperature for your mini split indoor units.

Model Description Port Qty
PAC-MKA31BC Branch Box 3
PAC-MKA51BC Branch Box 5
